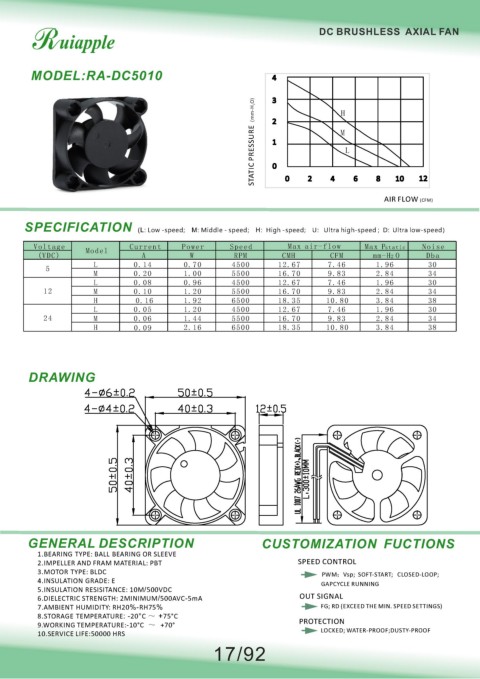

DC BRUSHLESS AXIAL FAN

MODEL:RA-DC5010 4

O) 3 H
STATIC PRESSURE（mm-H 2 1 M L
2

0
4
0
2
10
12
8
6
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）

Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H2 O Dba
L 0.14 0.70 4500 12.67 7.46 1.96 30
5
M 0.20 1.00 5500 16.70 9.83 2.84 34
L 0.08 0.96 4500 12.67 7.46 1.96 30
12 M 0.10 1.20 5500 16.70 9.83 2.84 34
H 0.16 1.92 6500 18.35 10.80 3.84 38
L 0.05 1.20 4500 12.67 7.46 1.96 30
24 M 0.06 1.44 5500 16.70 9.83 2.84 34
H 0.09 2.16 6500 18.35 10.80 3.84 38

DRAWING

、 、

GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
