P. 19

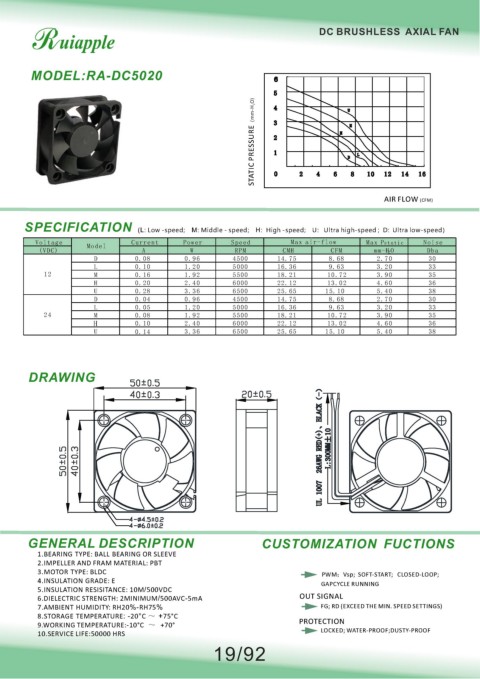

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC5020 6
5
O) 4 3 H U
STATIC PRESSURE（mm-H 2 2 1 M D H M L L
6
4
0
2
16
14
12
8
10
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
D 0.08 0.96 4500 14.75 8.68 2.70 30
L 0.10 1.20 5000 16.36 9.63 3.20 33
12 M 0.16 1.92 5500 18.21 10.72 3.90 35
H 0.20 2.40 6000 22.12 13.02 4.60 36
U 0.28 3.36 6500 25.65 15.10 5.40 38
D 0.04 0.96 4500 14.75 8.68 2.70 30
L 0.05 1.20 5000 16.36 9.63 3.20 33
24 M 0.08 1.92 5500 18.21 10.72 3.90 35
H 0.10 2.40 6000 22.12 13.02 4.60 36
U 0.14 3.36 6500 25.65 15.10 5.40 38
DRAWING
RED(+)、BLACK（-）
26AWG L:300MM±10
1007
UL
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
19/92
